Cross Stream Cutter

The Cross Stream Cutter (CSC) is specially designed to extract a representative increment, or cut, by discharging a complete cross-section of the free-falling bulk material into an outlet chute. As a Theory of Sampling (TOS)-compliant device, the CSC ensures that each sample accurately reflects the composition of the entire material stream, eliminating bias caused by particle segregation or flow variations. This is the essential first step toward accurate process control and reliable final product certification.

The CSC operates automatically and reliably, integrating seamlessly into both existing and future conveyor systems. Its robust construction, precision-engineered blade, and fully enclosed housing work together to prevent cross-contamination and deliver consistent performance over time. This makes it an ideal solution for demanding industrial environments such as mining operations, power plants, and bulk material processing facilities, particularly where space constraints are a critical consideration, all without compromising on sampling accuracy.

Similar products include Cross Belt Sampling Systems, which use a rotating sample cutter moving perpendicular to the material flow above a conveyor belt to collect representative samples. These systems are recognized for their cost-effectiveness, ease of installation, and adaptability across a range of industrial applications.

For applications with different spatial or material requirements, another comparable primary sampling solution is AUTONOMA’s own Cross Stream Sampler (CSS). Like the CSC, the CSS is TOS-compliant and engineered to extract a fully representative increment from a free-falling stream at a transfer chute or discharge point. To accommodate diverse operational needs, it is available in two variants: the heavy-duty, chain-driven CSS-C, built for exceptional reliability across most materials, and the wire-driven CSS-W, the preferred choice for environments with high concentrations of dust or fine particulates, ensuring smooth, consistent operation with materials such as biomass or limestone powder.

The Cross Stream Cutter is:

• • Theory of Sampling (TOS)-compliant, which is the key to high-quality, reliable sampling results. This design guarantees that every particle in the material stream has an equal and constant probability of being included in the extracted increment, eliminating sampling bias.

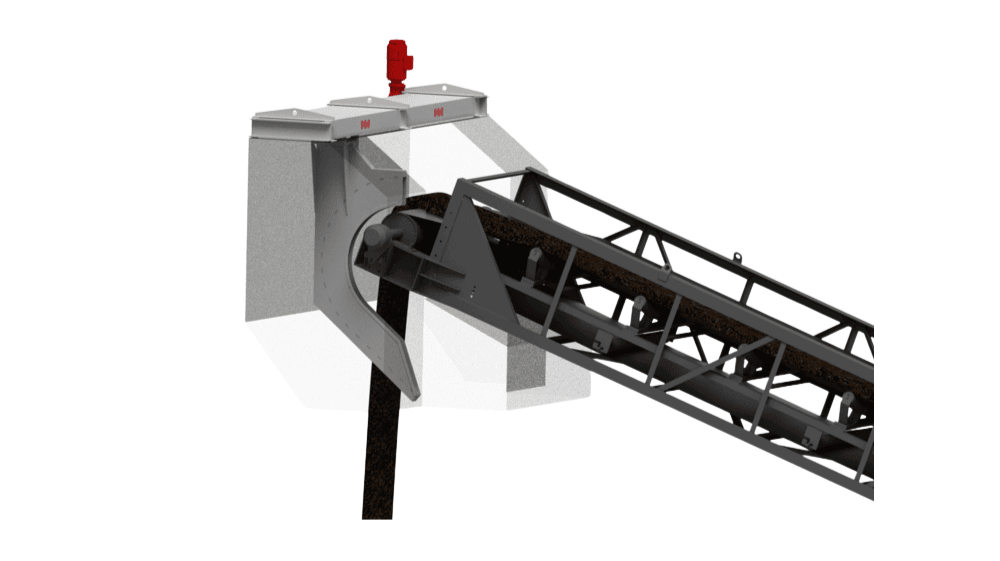

• Fully enclosed in a robust cover housing to prevent cross-contamination between successive increments. This critical feature ensures the purity and integrity of each sample, which is vital for accurate downstream analysis.
• Specifically designed to occupy less space compared to the Cross Stream Sampler (CSS), making it the ideal solution for installations where space constraint is a critical issue.
• Engineered with fewer moving parts compared to other primary samplers, which directly translates to higher operational reliability, reduced maintenance requirements, and a lower total cost of ownership over the system’s lifespan.
• Thanks to a fully scalable design, the CSC can be precisely configured to cope with small as well as high-volume streams from high-capacity Bulk Material Handling Systems (BMHS).
• Built to be well-suited for harsh industrial environments and rough materials, delivering consistent and dependable performance as commonly seen in the demanding Australian mining industry.

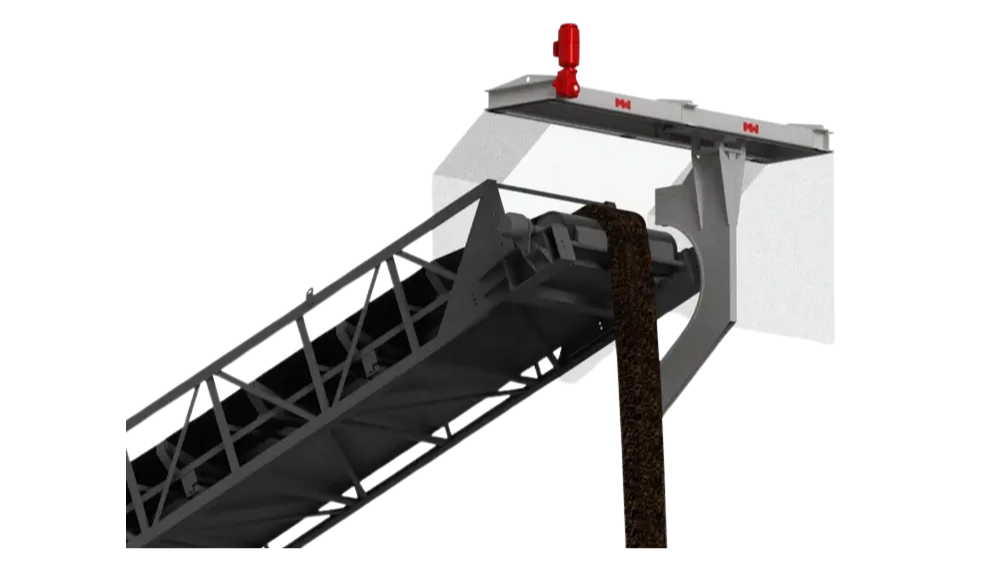

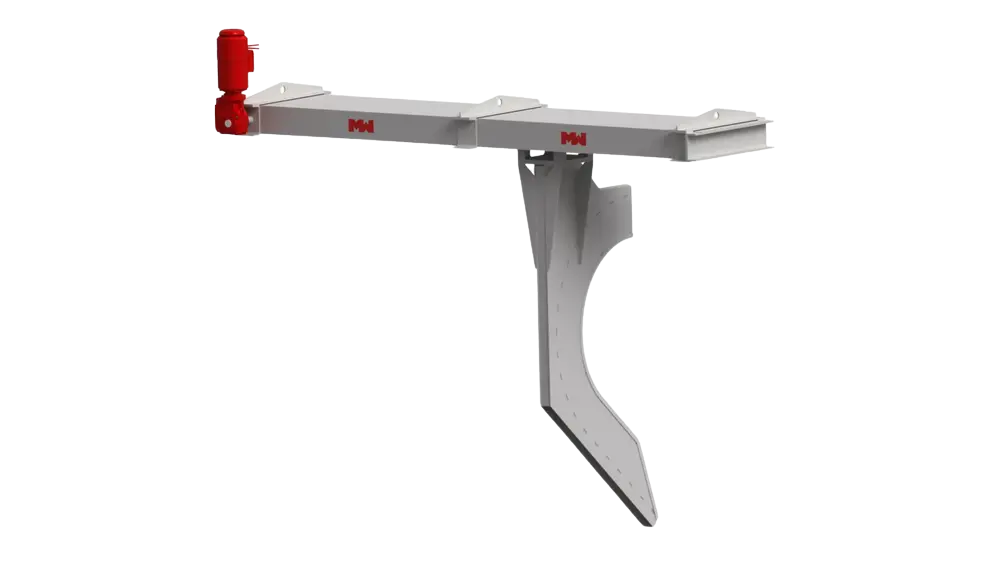

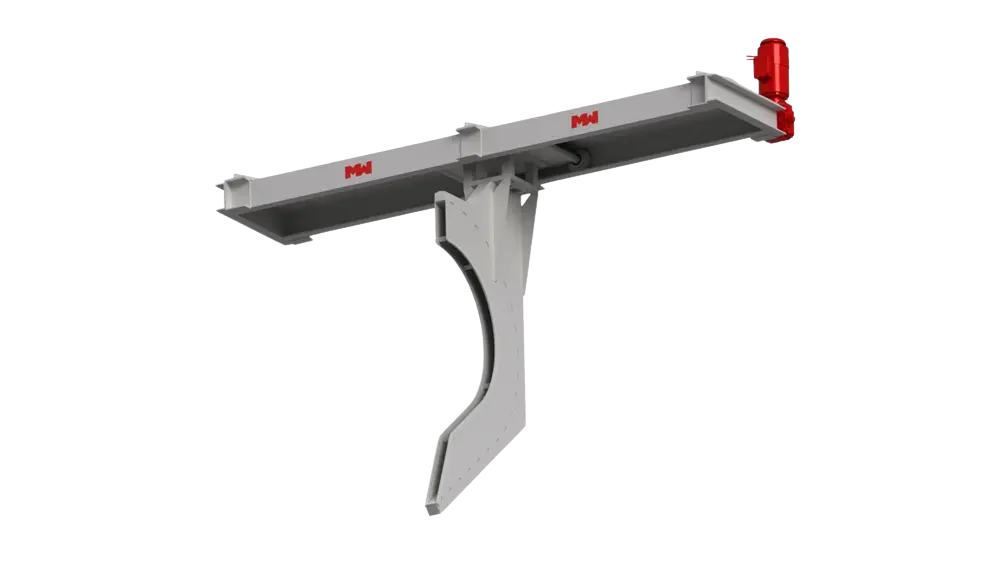

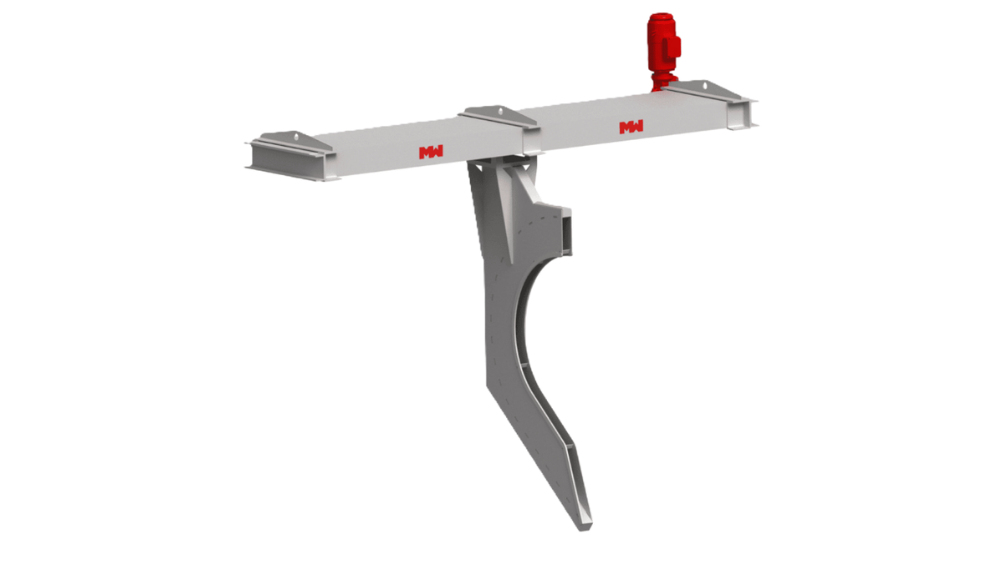

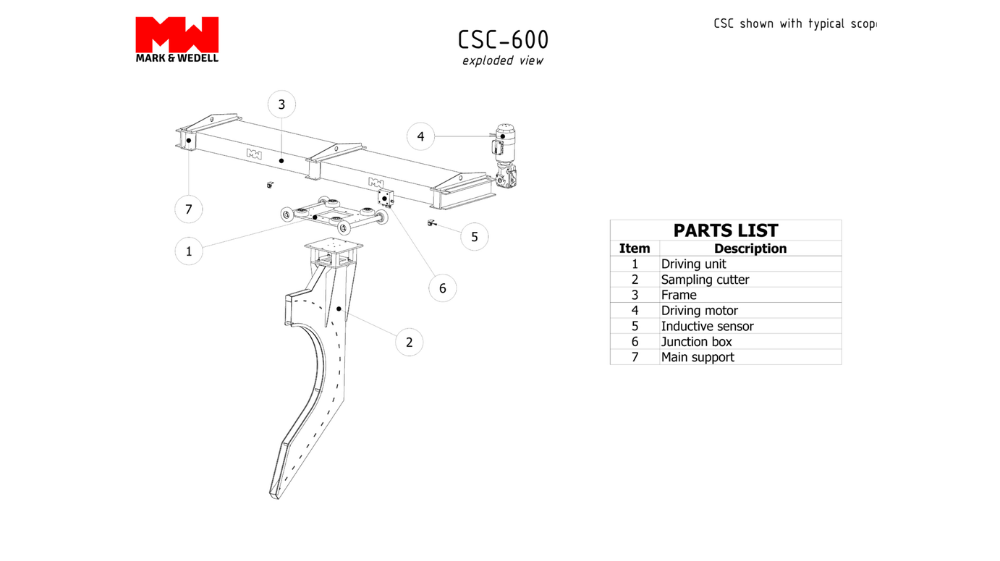

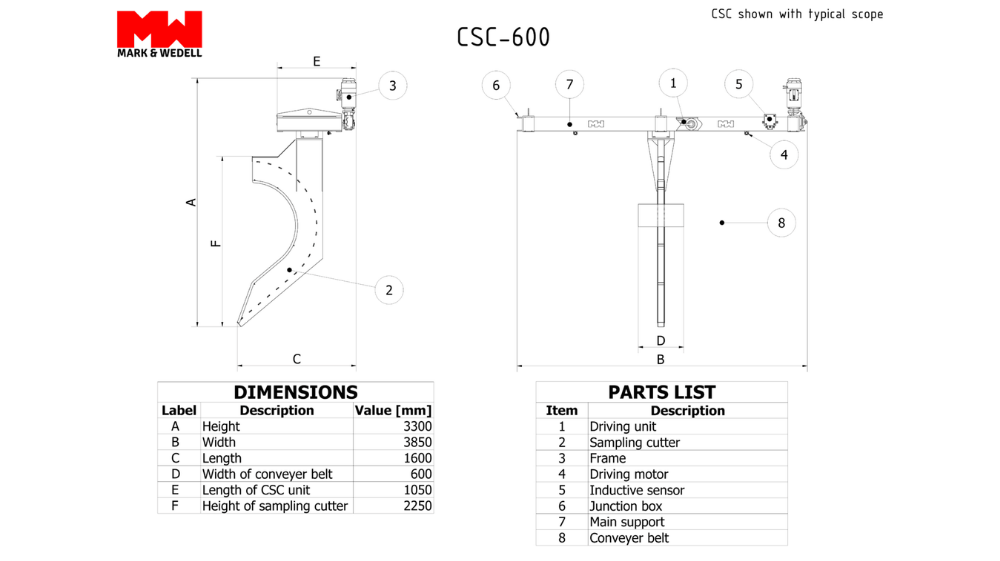

The CSC consists of a cutter oriented parallel to the moving stream surface, attached to a double rail carriage positioned above the material flow. The motor control system ensures the cutter operates at a constant speed of up to 0.6 m/s as it passes through the falling material stream, maintaining consistent contact and cut quality throughout each pass.

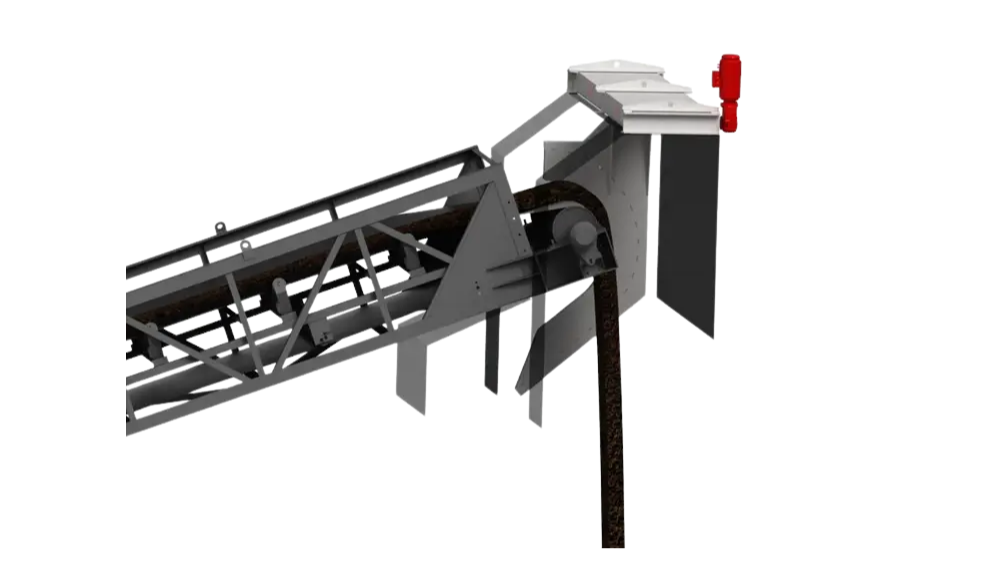

Each time the cutter travels through the stream, whether moving from left to right or right to left, an increment is continuously discharged into the outlet chute. This bidirectional cutting action allows the CSC to collect representative increments efficiently on every pass, supporting reliable, high-frequency sampling without unnecessary delays between cycles.

The CSC control software manages the motion of the cutter as it travels across the double rail carriage, ensuring a constant, precisely controlled speed of up to 0.6 m/s as it passes through the falling material stream in both directions. This consistent speed control is essential to maintaining cut quality and ensuring each increment collected is truly representative of the material passing through at that moment.

Cutting cycles can be triggered automatically according to a configured sampling frequency or material throughput, or initiated manually by an operator when required. The software coordinates the timing of each left-to-right and right-to-left pass, ensuring increments are continuously and reliably discharged to the outlet chute without gaps in coverage or unnecessary downtime between cuts.

Operators can monitor cutter position, cycle counts, sampling frequency, and system alerts through the control interface, providing clear visibility into ongoing sampling activity. Sampling parameters can be configured to match specific process requirements, allowing the CSC to be adapted to different material flow rates, belt configurations, and production schedules.

The software also includes fault detection and alerting, flagging issues such as motor faults, carriage obstructions, or incomplete passes so maintenance teams can respond quickly and maintain consistent sample quality.
